This page provides a complete schematic diagram of the fuses and relays of the Nissan X-Trail T31 (2007–2013). The diagrams help to quickly determine the location and purpose of each fuse and relay in the blocks under the hood and in the passenger compartment of the car.
The information will be useful for owners who perform independent repairs, diagnostics of electrical faults, as well as for service station specialists. Here you can find data on lighting systems, climate control, engine starting, interior electrical equipment and other circuits.
The page simplifies troubleshooting and replacing blown fuses, which reduces repair time and increases the reliability of the car.

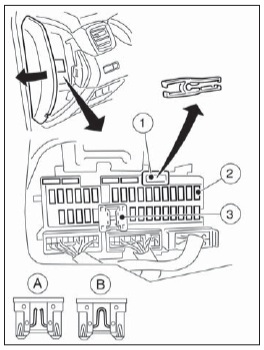

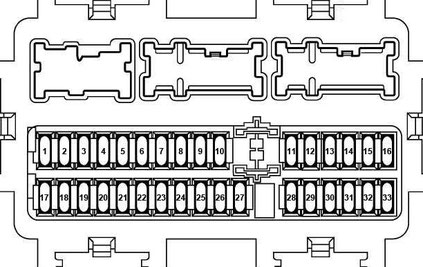

Left block (main)

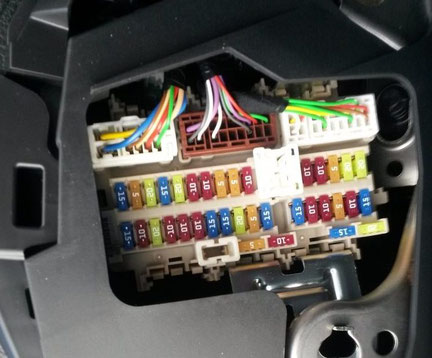

Photo - example (inverted image)
1 15A Direction indicators, hazard warning lights (BCM)
2 5A 4WD control module
3 20A Central locking system (BCM)
4 15A Rear window wiper (BCM)
5 20A Central locking system (BCM)
6 10A 4WD control module, diagnostic socket, parking brake
7 10A BCM
8 5A Clutch switch
9 1A Nissan Anti-Theft System (NATS) antenna
10 10A Brake light switch
11 20A Audio system
12 10A Subwoofer (optional socket)
13 10A Instrument cluster
14 5A BCM, siren control module
15 20A Audio system, control module Navigation, Around View Monitor
16 20A Audio, Navigation Control Unit, Around View Monitor
17 15A Blower Motor, Air Conditioning
18 10A Spare Fuse
19 20A Cigarette Lighter
20 10A Air Conditioning, Brake Pedal, Stop Light Switch (R9M), Mirror Control Unit
21 10A ABS, ABS Control Unit, Vehicle Dynamic Control (VDC)
22 10A Heated Mirrors
23 15A Heated Rear Window
24 15A Heated Rear Window
25 20A Interior Light Relay (BCM), Optional Socket
26 5A Navigation Control Unit, Headlight Range Adjustment, Audio
27 15A Blower Motor, Air Conditioning, Bypass Relay
28 15A Heated Front Seats
29 10A DC/DC Converter
30 10A Brake light switch. Steering angle sensor, Sonar control unit, ESP control unit, All-wheel drive control unit, Diagnostic socket, Audio system, Navigation control unit, Around View Monitor, Parking brake. Chassis module, Auto-dimming mirror, Option socket, Combination switch, Fuel preheating relay. Distance sensor, Front camera, PTC relay: 1, 2, 3
31 5A Instrument cluster, diode
32 10A Airbags
33 15A Windscreen washer, combination switch
Fuse number 19 for 20A is responsible for the cigarette lighter.
The individual relay elements are located on the back side of the unit: Ignition, Heater, Rear Window Defogger, Auxiliary Relay.

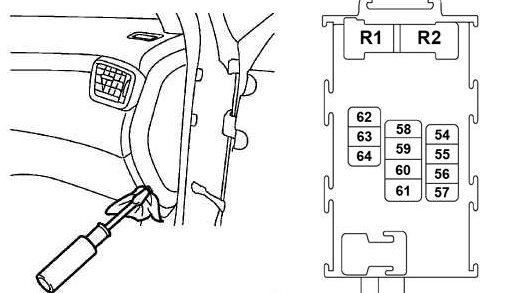

Right block
It is present mainly in cars with a start-stop system.
54 10A Steering Angle Sensor
55 10A Diode
56 10A Audio, Around View Monitor, Distance Sensor, Front Camera
57 10A Engine Control Module, Transmission Control Module, Transmission Range Sensor, Engine Compartment Fuse Box, Neutral Position Sensor, Primary Speed Sensor, Secondary Speed Sensor, Speed Sensor, Reverse Speed Switch
58 Not Used
59 10A Air Conditioner
60 10A ABS, ABS Control Module, Vehicle Dynamic Stability Control (VDC)
61 Not Used
62 Not Used
63 20A Audio, Navigation Control Module, Around View Monitor
64 Not Used
- R1 — Auxiliary Relay
- R2 — Ignition

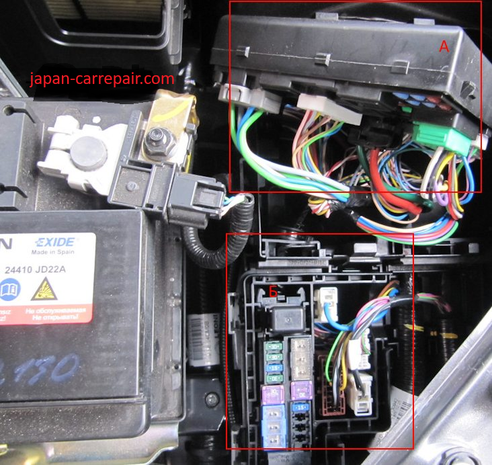

Blocks under the hood

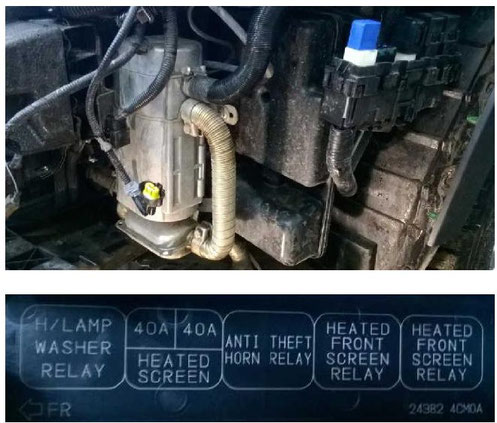

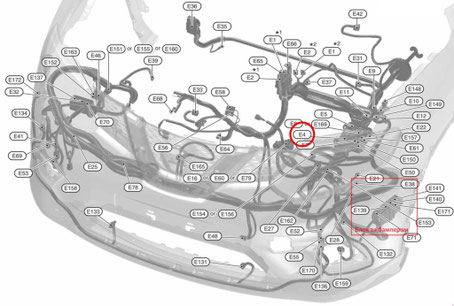

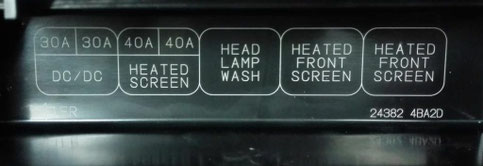

There are 4 fuse boxes in the engine compartment. 2 fuse boxes are located next to the battery, high-power fuses are on the battery terminal and there is one additional fuse behind the bumper on the side under the headlight.
Block A

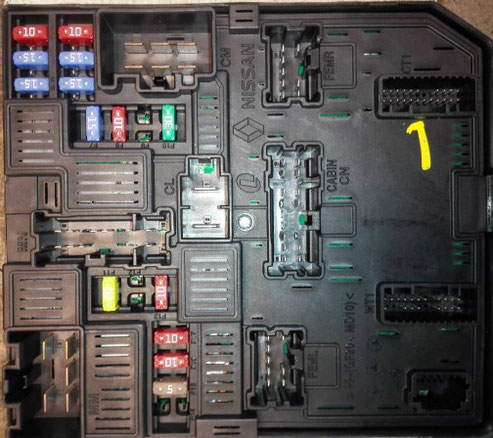

Example of execution
81 10A Engine Control Module
82 15A Engine Control Module,
83 15A Throttle, Engine Control Module, Evaporative Canister Valve (EVAP), Mass Air Flow Sensor, Ignition Coils, Main Relay, Exhaust Valve, Inlet Valve, High Pressure Fuel Pump, Injectors, Engine Compartment Fuse Box, Air Fuel Ratio Sensor, Fuel Heater, Water in Fuel Sensor, Coolant Bypass Valve
84 10A Engine Control Module, Intake Manifold Valve, Timing Belt Exhaust Valve, Timing Belt Inlet Valve, Timing Belt Intermediate Valve
85 15A Air Fuel Ratio Sensor, Heated Oxygen Sensor, Turbocharger Valve, Engine Control Module, Glow Plug Control Module
86 15A Injectors, Ignition Coils, Fuse Box
87 15A A/C Compressor Relay
88 Not Used
89 Not Used
90 30A Relay Front Wiper, Front Wiper Motor
91 20A Fuel Pump Relay
92 Not Used
93 10A Engine Control Module, Transmission Control Module, Transmission Range Sensor, Engine Compartment Fuse Box, Neutral Position Switch, Primary Speed Sensor, Secondary Speed Sensor, Speed Sensor, Reverse/Neutral Switch
94 Not Used
95 5A Steering Wheel Lock Module
96 10A Start/Stop Relay
97 10A Front Right Combination Light, Front Left Combination Light, Compressor, Transmission Range Sensor, Engine Compartment Fuse Box, Neutral Position Switch, Reverse Speed Switch, Reverse/Neutral Switch

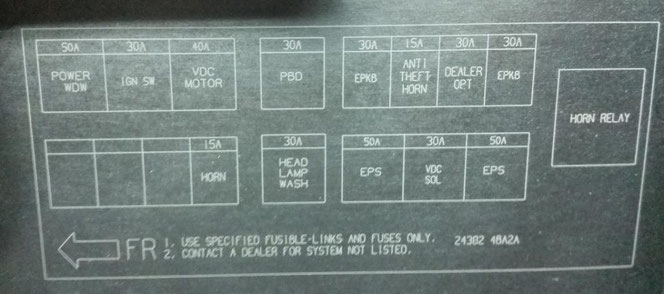

Block B

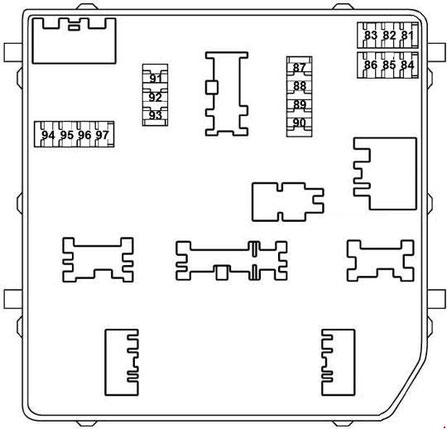

Diagram
41 15A Horn
42 30A R9M: PTC Relay 2
43 30A R9M: PTC Relay 3
44 30A R9M: PTC Relay 1
45 30A Parking Brake
46 30A Option Socket
47 15A Horn
48 30A Parking Brake
F 50A ESP
50A R9M: Power Windows, Sunroof, Blind, Power Seats
G 30A ABS
H 50A ESP
30A R9M: Engine Cooling Fan Relay
I 30A Starter
50A R9M: ESP
J 30A Power Tailgate
50A R9M: ESP
K 40A ABS
30A R9M: Engine Cooling Fan Relay
L 30A Starter, Fuse Box (E14)
M 50A Window lifters, sunroof, curtain, electric seats
40A R9M: ABS

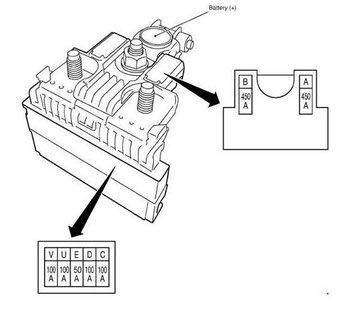

Block on the battery

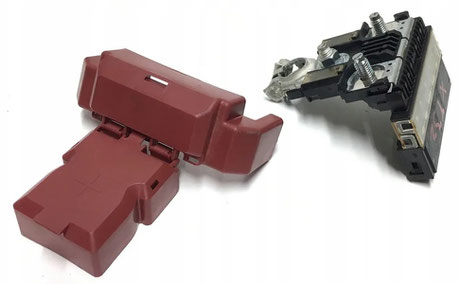

Located on the positive terminal of the battery, so this block can be simply called the positive terminal and consists of fuses made in the form of a high-power fusible link.
A 450A Alternator, Starter (QR, MR), Restart Relay (Start-Stop), Fuse #F (ESP)
B 100A Alternator, Starter, Restart Relay (Start-Stop), Fuse #F (ESP)
450A Alternator, Starter, Restart Relay (Start-Stop), Fuse #F (ESP)
C 100A Ignition, Passenger Compartment Fuse Box
D 80A Engine Compartment Fuse Box #3
100A Fuse Box, Fuse Box (E137 - Thermal Plunger (R9M Engine))
E 100A Passenger Compartment Fuse Box
50A Engine Compartment Fuse Box #2 (F116)
U 100A Engine Compartment Fuse Box #2 (F116), #3, ignition
V 100A ESP
